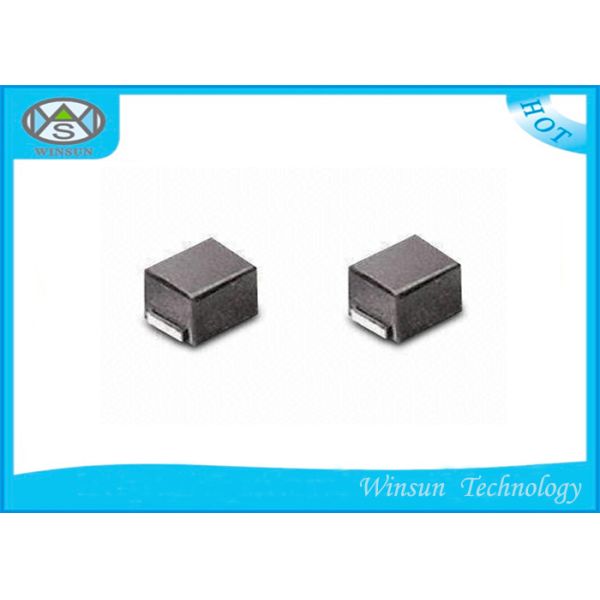

Chip Ferrite Wire Wound Inductor / Made In Shenzhen / High Performance
SPECIFICATIONS:
1, Inductance : 0.01~1000uH
2, Size: 0603~1812
3, Rated Current : 20~1000mA(Max)
4, DCR : 0.13~28 Ω (Max)
5, SRF: 1.4~1150MHz(Min)
6, Operating temperature range :–40 to +85°C
7, Storage temperature range: –10 to +40°C
DIMENSIONS : (unit: mm/inch)
| Par N0. | A (Max.) | B (Max.) | C (Max.) | D | E | F | G |
| 0603 | 1.78 (.070) | 1.10 (.043) | 0.95 (.037) | 0.30 (.012) | 1.02 (.04) | 0.64 (.025) | 0.64 (.025) |
| 0805 | 2.30 (.091) | 1.70 (.067) | 1.52 (.060) | 0.50 (.020) | 1.78 (.07) | 1.02 (.04) | 0.76 (.03) |
| 1008 | 2.92 (.115) | 2.79 (.110) | 2.10 (.083) | 0.5 (.020) | 2.54 (.10) | 1.02 (.04) | 1.27 (.05) |
| 1210 | 3.50 (.138) | 2.90 (.114) | 2.2 (.088) 5 | 0.50 (.020) | 2.54 (.10) | 1.02 (.04) | 1.78 (.07) |
| 1812 | 4.80 (.189) | 3.40 (.134) | 3.15 (.124) | 0.65 (.026) | 3.05 (.12) | 1.14 (.045) | 3.00 (.118)
|
FEATURES:
. Minature size, suitable for SMT;
. Using terminal electrode structure to restrain the
parasitic component effect quite caused by lead;
. low DC resistance , high current and high inductance;
. Execellent in solderability and heat resistance.
• The product has good heat durability that withstands lead-free compatible reflow soldering conditions.
• Lead-free material is used for the plating on the terminal
• The electrical characteristics, reliability, shape and pad shape are the same as the previous NL series.
• The product uses metal terminals, which realize excellent connection reliability.
• Highly heat resistant thermoplastic resin is used to form the exterior package.
• From 0.01μH to 1000μH, all of the products in the E-12 series are J(±5%) tolerance products.
• This product is in compliance with the RoHS Directive. Other products with specifications that do not include exemption regulations are also available.
APPLICATIONS:
• Audio-visual equipment including TVs, VCRs and digital cameras.
• Electronic equipment used in communication infrastructures
including xDSL and mobile base stations.
• Electronic equipment used in onboard automobile equipment
including car audio and ECU systems.
• Other electronic equipment including HDDs and ODDs.
